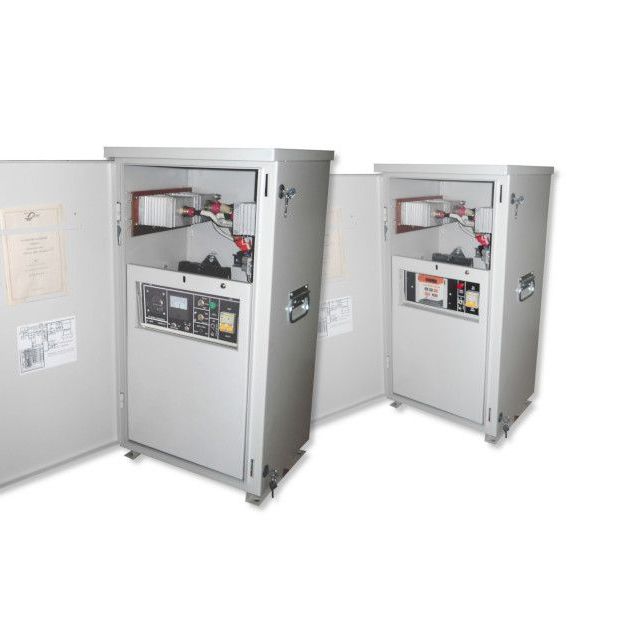

Electro-drainage device & cathodic protection rectifierUEDZ OPE 1,8&UEDZ OPE TM-GSM 1,8
TU 3415-003-27191815-94
Automatic electro-drainage device & cathodic protection rectifier. Basic and telemetry variants
Online purchase available!
from 268 889 RUR
Characteristics
Nominal supply voltage, V AC
220/230
Maintaining operability at supply voltage, in the range, V AC
from no less than 150 till no more than 264
Power supply frequency, Hz
50+1
Doubling output voltage mode
Yes
Maximal output current (for CP TR mode), A:
160/80 (for the doubling output voltage mode)
Maximal output voltage (for CP TR mode), V:
12/24 (for the doubling output voltage mode)
Maximal drainaged current (for electro drainage mode):
300
Efficiency in nominal mode (for CP TR mode), not less than, %
70
Power factor, not less than
0,9
Output voltage setting range, %, of nominal value:
from no more than 2 to no less than 100
Range of stabilized value of protective potential, negative, V
0,5 — 3,5
Deviation of the stabilized value in the modes of automatic maintenance of the protective potential, no more than, %
2,5
Climate performance, placement category
N1
Service safety class
1
Degree of protection against environmental influences and contact with live parts
IP34
Operating temperature range, deg. C
from minus 45 to plus 45
Weight, not more than, kg
85
Overall dimensions, no more than, mm (WxHxD)
460 х 855 х 400
Data transfer protocol
(for "TM-GSM")
Modbus RTU (wired interface CAN/RS-485/RS-422), wireless GSM(CSD)/GPRS/SMS)
Established service life, years
15
Warranty periods of operation/storage, months
12/18
